GPR Scanning Concrete: What It Is and Why It Matters Before Drilling

GPR scanning concrete means using ground-penetrating radar to locate rebar, cables, and voids inside a slab before drilling or cutting begins.

A drill bit hits a live electrical conduit, and a routine anchor installation turns into a half-day shutdown. This happens more often than most people think. GPR scanning concrete has become the standard first step for crews who don't want to find out what's hiding in a slab the hard way. According to the American Concrete Institute (2023), roughly 30% of concrete-related drilling incidents trace back to unmarked utilities or reinforcement damage. For core drilling companies working on industrial sites, that risk isn't just costly — it can delay an entire project timeline. This guide walks through what a GPR scan actually is, why it matters, how the process works, and where teams commonly go wrong. We'll also look at how it compares to methods like anchor bolt pull testing and Windsor probe testing.

What Is a GPR Scan?

What is a GPR scan? It's a non-destructive testing method that sends radar pulses into concrete and reads the signals that bounce back to map what's hidden inside. Ground-penetrating radar (GPR) is the equipment used to do this, and it works by detecting changes in the material a pulse passes through — solid concrete reflects differently than steel, air, or water.

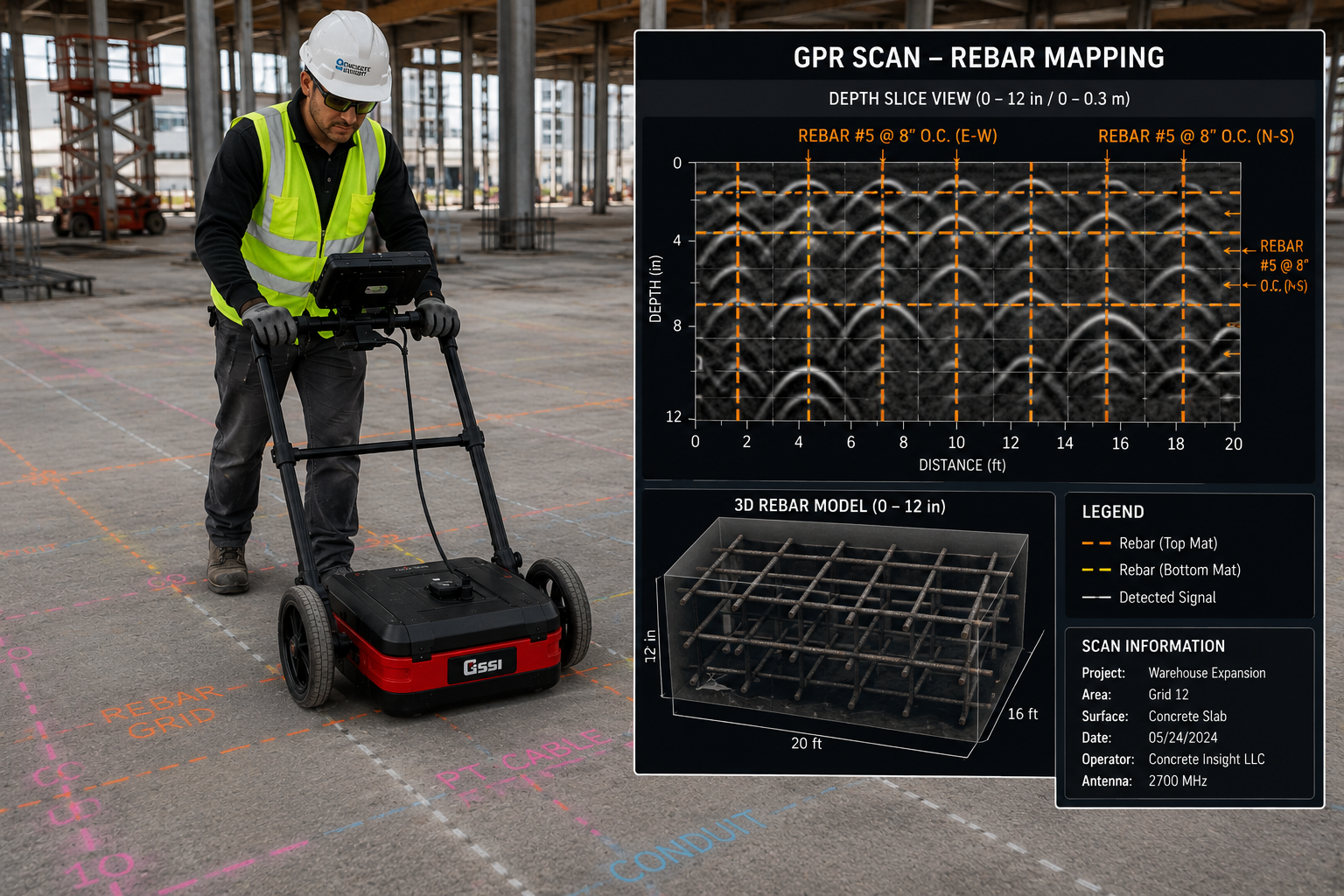

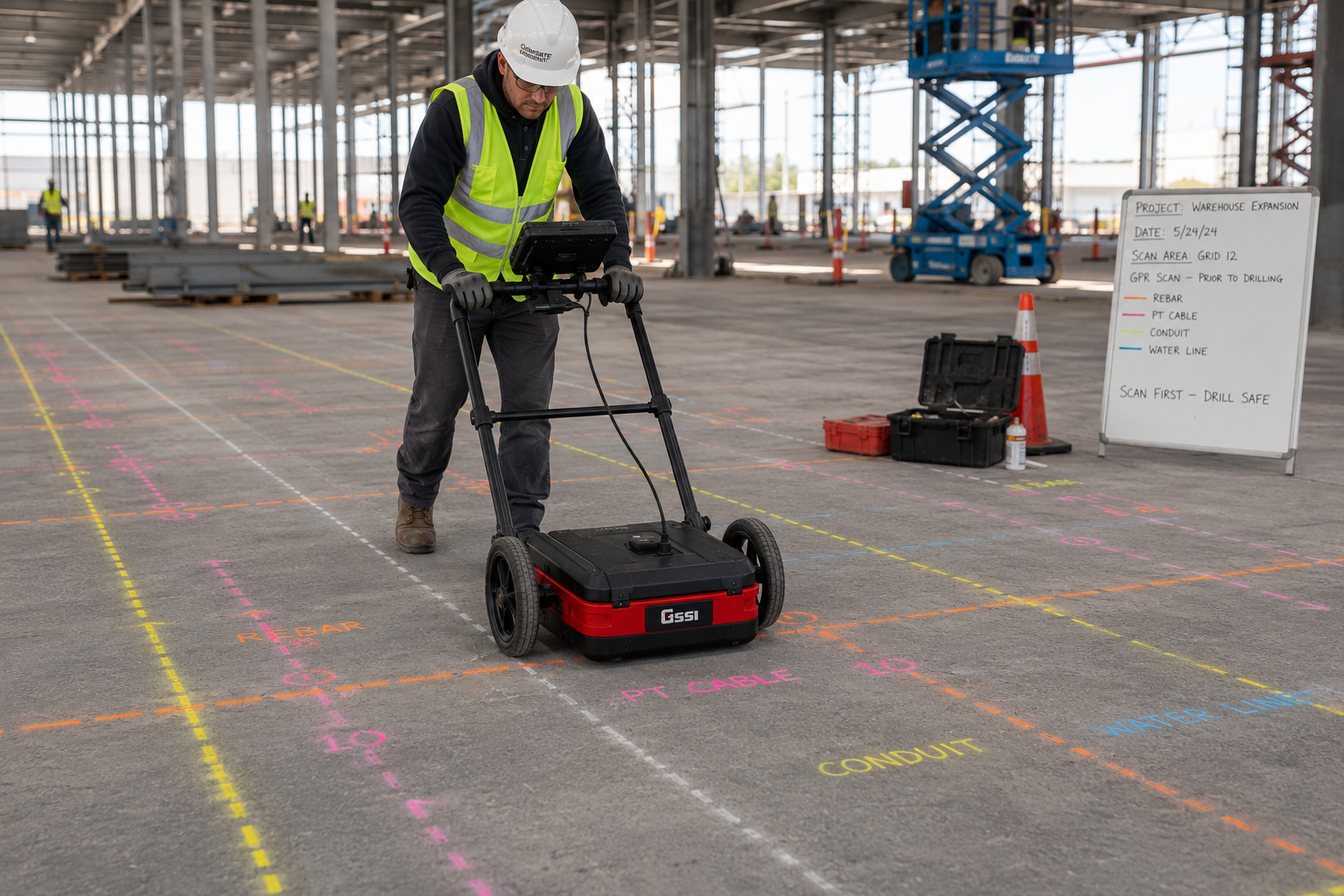

A trained technician moves the GPR unit across the slab in a grid pattern. As the unit passes over rebar, post-tension cables, conduits, or voids, the display shows a distinct signal pattern for each. The technician marks these locations directly on the concrete surface using paint or chalk, so the drilling crew has a real-time, visual map of safe and unsafe zones.

Unlike X-ray scanning, GPR requires no radiation and no evacuation zone, which makes it practical for active job sites. Most scans on a standard slab section take under an hour, and results are available immediately — no waiting days for a report. This is one reason GPR scanning concrete has become the default choice over older detection tools like simple rebar locators, which can't see nearly as deep or as clearly, especially in the thick, densely reinforced slabs common on industrial sites.

A GPR scan typically identifies:

1. Rebar — steel reinforcement bars embedded for structural strength

2. Post-tension cables — high-tension cables carrying major structural load

3. Conduits and electrical lines — power and data cabling inside the slab

4. Plumbing lines — water and drainage pipes cast into concrete

5. Voids and honeycombing — air pockets or weak spots from poor consolidation

Why Do Core Drilling Companies Rely on GPR Scanning?

Core drilling companies use GPR scanning because drilling blind is an expensive gamble. A severed post-tension cable can cost tens of thousands of dollars to repair and can shut a site down for days while engineers assess the structural impact. On industrial projects, where slabs carry heavier loads and denser reinforcement, the stakes are even higher.

There's also a liability angle. If a crew damages a utility or cable without documented proof they scanned first, insurance claims get complicated, and the contractor often carries the blame. A GPR scan report creates a paper trail showing due diligence was performed — something that matters a great deal if a dispute ever goes to arbitration or court.

Beyond damage prevention, GPR scanning concrete helps with planning. Knowing exactly where rebar sits lets engineers design anchor layouts that avoid conflicts entirely, rather than adjusting mid-job. Many project specs now require a GPR scan report before permitting any drilling, cutting, or coring work on structural slabs. That's a shift from a decade ago, when scanning was treated as optional on all but the highest-risk jobs. Today it's closer to standard practice across industrial and commercial construction alike.

Why core drilling companies prioritize GPR scanning:

1. Prevents costly repairs — avoids severed cables and structural damage

2. Reduces liability — creates a documented record of due diligence

3. Improves planning — lets engineers design anchor layouts around known hazards

4. Meets project specs — many contracts now require scan reports before permitting drilling

How Does GPR Scanning Fit Into the Drilling Workflow?

The workflow usually starts with a site walk, where the technician and site lead review drilling locations and any known hazards like electrical rooms or existing anchor points. From there, the GPR unit is passed over the marked zones methodically, collecting radar data as it moves across the slab.

Here's a typical sequence on an industrial job:

1. Site walk — confirm drilling zones and flag known risks

2. Grid scanning — GPR unit passes over the area in overlapping passes

3. Live signal reading — technician interprets rebar, cable, and void patterns in real time

4. On-site marking — safe-to-drill zones are chalked or painted directly on the slab

5. Crew sign-off — the drilling team reviews markings together before work starts

6. Post-drill verification — an anchor bolt pull test or Windsor probe test confirms the hole meets load or strength requirements

On one warehouse expansion project, a scanning crew found a post-tension cable running directly through a planned anchor line that wasn't on the original blueprints. Shifting the anchor points by just eight inches avoided a repair that would have cost far more than the scan itself. That's the kind of outcome GPR scanning is designed to catch before it becomes a problem.

What Mistakes Do Teams Make With GPR Scanning Concrete?

The most common mistake is scanning too narrow an area, assuming the drill bit will stay exactly inside the marked zone. Bits can wander slightly during drilling, so a safety margin around every hole matters more than people expect.

Another frequent error is skipping the scan on jobs that seem simple — thin slabs, interior walls, or "just one hole" installations. Thinner sections often have less margin for error, not more, because there's less room between the surface and embedded steel. Teams also sometimes fail to have a second person cross-check markings before drilling starts, which raises the odds that a misread signal slips through unnoticed.

Finally, some crews treat a GPR scan as a one-time step rather than repeating it when a drilling plan changes mid-project. If anchor locations shift after the original scan, that new area needs its own pass. In practice, projects that run into cable strikes or rebar damage are almost always the ones where scanning got rushed or skipped to save time — not the ones where it was done properly.

Common mistakes to watch for:

1. Scanning too narrow an area around the planned drill zone

2. Skipping the scan on "simple" thin-slab or single-hole jobs

3. Not having a second person cross-check the markings

4. Failing to re-scan after the drilling plan changes mid-project

Tips for Getting Accurate Concrete Scanning Results

Work with a technician trained specifically in GPR interpretation rather than treating the equipment as something anyone can run. Reading radar signal patterns accurately takes real experience, and misreads are more common with untrained operators. Always scan a wider footprint than the planned drill zone, and keep marking colors consistent across the crew so there's no confusion about what each mark means.

Schedule GPR scanning early in the project timeline, not the day drilling is supposed to start, so any conflicts can be resolved without delaying the schedule. After drilling, pair the scan with follow-up testing like an anchor bolt pull test to confirm holding capacity, or a Windsor probe test to verify concrete strength where that's a project requirement. Keep every scan report and test result on file — they're useful for compliance, insurance claims, and any future renovation work on the same structure.

Quick tips for reliable results:

1. Use a technician trained specifically in GPR interpretation

2. Scan wider than the planned drill zone, not just the exact footprint

3. Keep marking colors consistent across the whole crew

4. Schedule scanning early, not on the day drilling is set to start

5. Follow up with a pull test or Windsor probe test where required

6. Keep scan and test reports on file for every job

FAQ

Q1: What is a GPR scan used for? A GPR scan is used to locate rebar, cables, conduits, and voids inside concrete before drilling, helping crews avoid hitting hidden hazards.

Q2: Is GPR scanning concrete safe for job site workers? Yes. GPR uses low-power radar with no radiation, so there's no evacuation zone needed and no health risk to nearby workers.

Q3: How long does GPR scanning concrete take? A standard slab section typically takes under an hour to scan, with results ready on-site immediately for the crew to review.

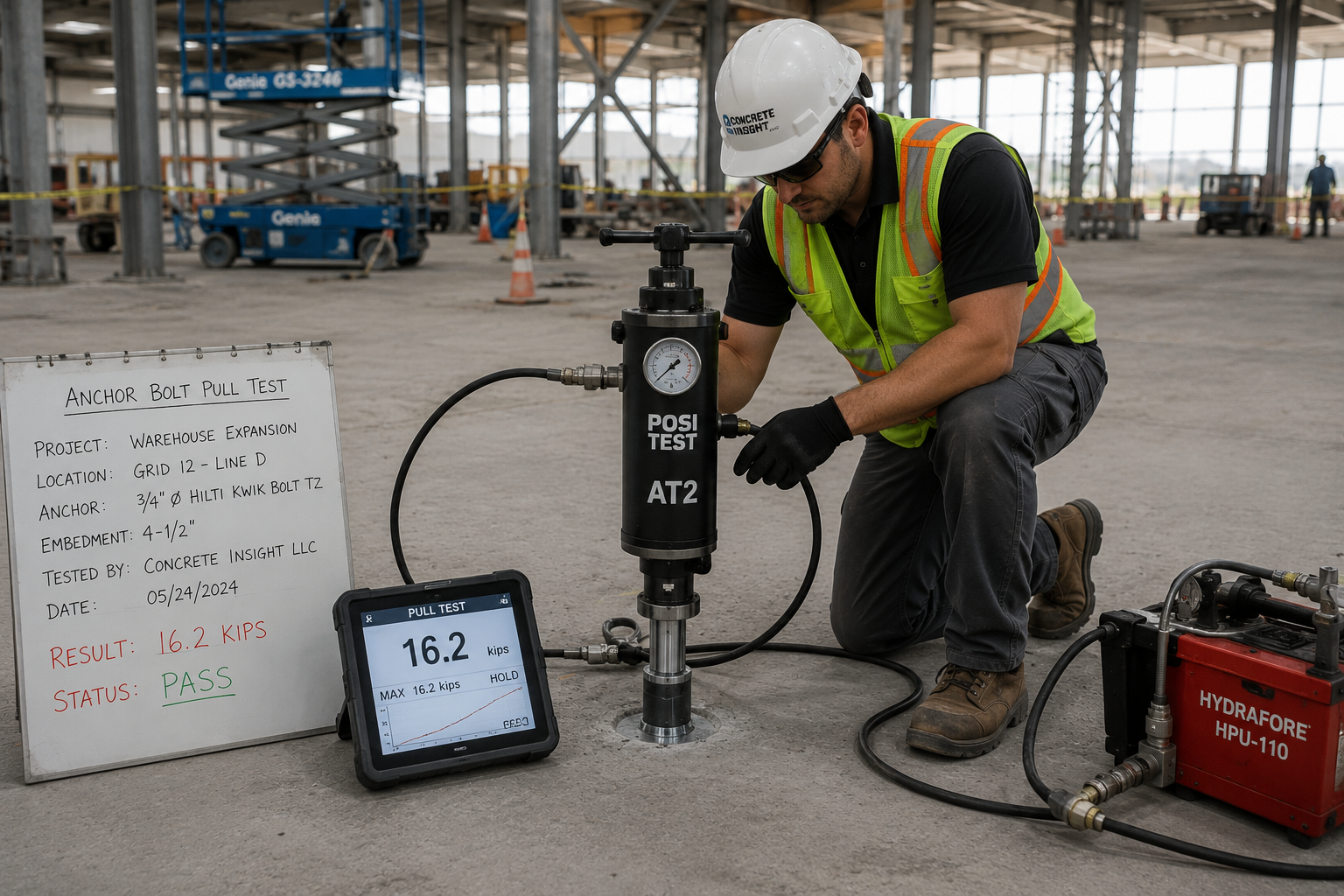

Q4: What is an anchor bolt pull test? An anchor bolt pull test measures how much force a drilled anchor can withstand before failing, confirming it meets load requirements after installation.

Q5: What does a Windsor probe test measure? A Windsor probe test measures the compressive strength of hardened concrete by firing a probe into the surface and measuring penetration depth.

Q6: Do core drilling companies need GPR scanning on every job? Most industrial and commercial jobs require it, since thicker, more heavily reinforced slabs carry higher risk of hidden cable or rebar damage without scanning first.

Conclusion

Skipping a pre-drilling scan is one of the most avoidable risks in industrial construction. GPR scanning concrete gives crews a clear, documented view of what's hidden inside a slab, reducing damage, delays, and liability before a single hole is drilled. Paired with follow-up checks like an anchor bolt pull test or Windsor probe test, it forms a complete verification process from start to finish. If your next project involves coring or anchor installation on a structural slab, it's worth building scanning into the plan from day one rather than treating it as an afterthought.
