Before drilling, coring, cutting, or installing anchors in an existing concrete structure, project teams need to understand what may be hidden beneath the surface. GPR for concrete scanning provides a non-destructive way to investigate concrete and identify potential subsurface features such as rebar, post-tension cables, conduits, and voids.

For contractors, engineers, project managers, and facility owners, choosing the right scanning company is about more than finding the lowest price. The provider should have suitable equipment, experienced technicians, clear communication, and an approach that matches the project's requirements.

Key Takeaways

1. Look for experience with commercial and existing concrete structures.

2. Ask what GPR equipment and scanning approach will be used.

3. Confirm how findings will be interpreted, marked, and communicated.

4. Understand what can affect scanning results and project pricing.

5. Consider whether your project also requires concrete coring services or concrete testing.

6. Don't rely solely on drawings when current field conditions are uncertain.

7. Request a clear scope before approving the work.

What Is GPR Scanning?

So, what is GPR scanning?

Ground-penetrating radar (GPR) is a non-destructive inspection method that uses electromagnetic signals to investigate materials below a surface. In concrete applications, radar responses can help technicians identify potential reinforcement, post-tension cables, conduits, voids, and other subsurface features.

The exact depth and clarity of a scan depend on factors such as the concrete itself, electrical conductivity, equipment frequency, surface conditions, and the characteristics of the target. Concrete Insight notes that GPR depth is not a single fixed number because the material being scanned and equipment characteristics affect the effective range.

That is why choosing an experienced technician is important. GPR equipment generates data, but that data still needs professional interpretation.

Why Choosing the Right Scanning Company Matters

A concrete scanning company is often involved immediately before destructive construction work. If the scan is incomplete, poorly communicated, or not matched to the drilling scope, the information may not be useful to the crew performing the work.

A qualified provider should understand the relationship between scanning and the work that follows.

For example, Concrete Insight explains that its GPR services are used to locate rebar, PT cables, conduits, and voids and can be combined with core drilling.

This makes project coordination an important part of the selection process.

7 Factors to Consider When Choosing a Concrete Scanning Company

1. Relevant Construction Experience

Start by looking for experience with projects similar to yours.

A commercial office renovation may have different requirements from a parking structure, hospital, data center, industrial facility, or infrastructure project.

Ask potential providers:

1. Have you worked on similar structures?

2. Do you scan slabs, walls, and columns?

3. Can you work around active construction?

4. Are your technicians experienced with reinforced and post-tensioned concrete?

5. Can you explain your scanning process before mobilization?

Experience should be evaluated based on relevant work rather than marketing language alone.

2. GPR Equipment and Scanning Approach

Don't simply ask whether a company “has GPR.” Ask whether its equipment and scanning method are appropriate for your project.

Important factors may include:

1. Concrete thickness

2. Expected target depth

3. Target size

4. Required resolution

5. Surface condition

6. Reinforcement density

7. Accessibility

8. Proposed drilling locations

GPR involves a trade-off between penetration and resolution. Concrete Insight explains that higher frequencies can provide better resolution while lower frequencies can provide greater penetration, depending on the material and application.

The best equipment is therefore not necessarily the most expensive equipment. It is the equipment and method appropriate for the specific investigation.

3. Technician Expertise

A GPR unit does not replace field experience.

The technician needs to understand radar responses and interpret potential targets within the context of the concrete structure.

Ask:

1. Who will perform the scan?

2. How will potential targets be identified?

3. Will proposed drilling locations be marked?

4. Can the technician explain the findings to the superintendent?

5. What limitations could affect the results?

This becomes especially important when proposed penetrations are close to reinforcement or post-tensioned elements.

4. Clear Marking and Documentation

Scan results need to be useful to the people performing the next phase of work.

Depending on the scope, a provider may mark potential targets directly on the concrete and provide photographs, measurements, sketches, or other documentation.

Before hiring a company, ask exactly what you will receive.

A useful deliverable should help the construction team understand:

Where are the proposed penetrations?

Where are potential embedded features?

What areas were actually scanned?

Are there limitations that the team needs to understand?

Clear communication can be just as important as the scan itself.

5. Understand Pricing

There is no universal price for GPR scanning.

The cost can vary depending on the project's scope and site conditions. Factors can include:

1. Number of scanning locations

2. Total scanning area

3. Concrete configuration

4. Accessibility

5. Required scan density

6. Documentation

7. Travel and mobilization

8. Project schedule

Instead of asking only for a price per hole, provide the scanning company with drawings, proposed penetration locations, approximate quantities, and project timing.

That gives the provider enough context to develop a more meaningful scope.

6. Ability to Coordinate With Concrete Coring

Scanning is frequently performed before concrete coring services.

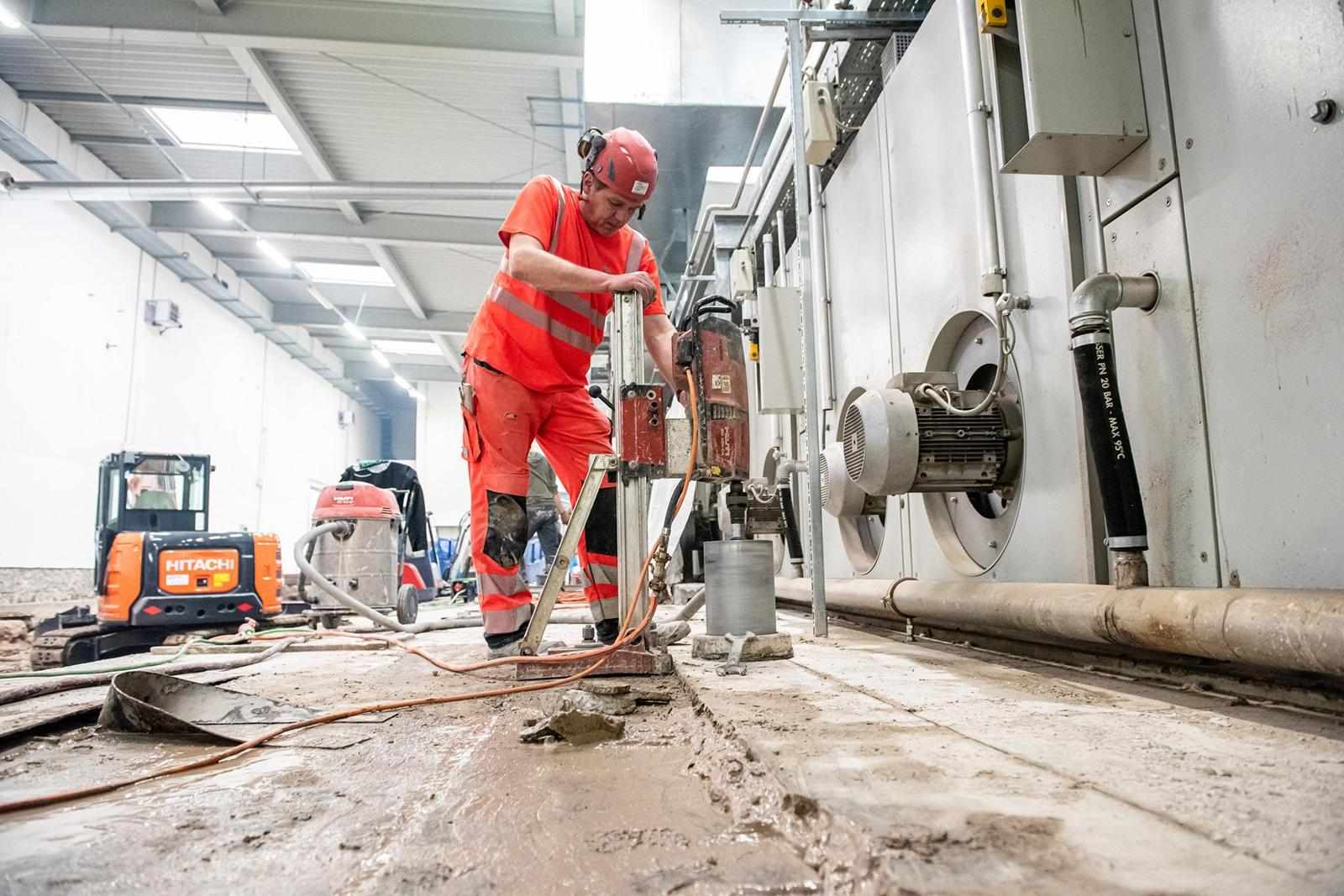

Concrete coring creates precise circular openings through concrete for applications such as utility penetrations and other construction requirements. Concrete Insight describes its coring capabilities as suitable for walls, slabs, and columns, with core sizes ranging from 1 to 60 inches according to its services page.

If your project needs both services, ask whether the scanning and coring teams can coordinate their work.

A typical workflow may look like:

Review scope → Scan → Interpret → Mark → Review → Core

Concrete Insight's published guidance also describes GPR scanning as part of the preparation process before core drilling.

7. Related Concrete Testing Capabilities

Some projects require scanning plus additional concrete testing.

Concrete Pull Test

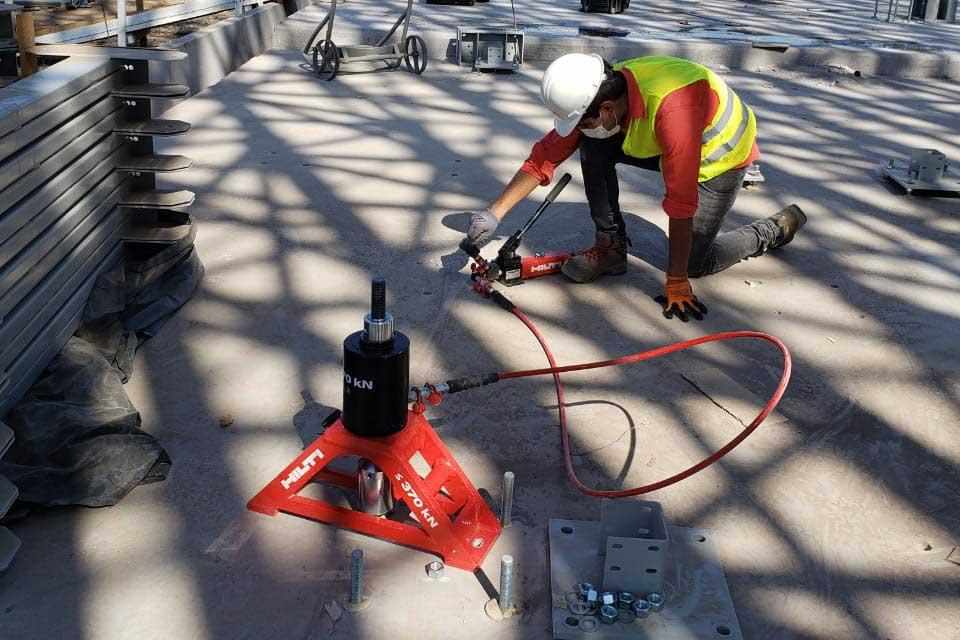

A concrete pull test or anchor pull test is different from GPR. GPR investigates subsurface conditions, while an anchor pull test applies tension to an installed fixing to evaluate its performance under the specified test conditions.

Concrete Insight provides anchor pull testing for applications involving anchor bolts, scaffold anchors, and safety lifeline anchors.

Windsor Probe Testing

A Windsor Probe test is another type of concrete investigation. It measures penetration resistance rather than directly measuring compressive strength. Concrete Insight describes its Windsor Probe service as a rapid in-situ concrete testing method and notes that results can be affected by factors including aggregate characteristics, carbonation, and reinforcement location.

Benefits of Professional GPR for Concrete Scanning

Better Pre-Drilling Planning

GPR can provide information about potential embedded features before drilling or cutting begins.

Identification of Potential Hazards

Depending on site conditions, scanning can help identify rebar, PT cables, conduits, and voids.

Improved Coordination

Clear scan markings can help contractors, engineers, and drilling crews coordinate proposed penetrations.

Non-Destructive Investigation

GPR investigates the concrete without first cutting into it, making it useful during planning and renovation work.

Better Understanding of Existing Structures

Older buildings may contain modifications that are not obvious from the surface. Field investigation can provide additional information when existing documentation is incomplete.

How the GPR Scanning Process Works

Step 1: Review the Scope

The technician reviews drawings, proposed penetration points, concrete elements, and project requirements.

Step 2: Inspect the Site

The scanning team evaluates access, surface conditions, finishes, and other factors that could affect the investigation.

Step 3: Perform the Scan

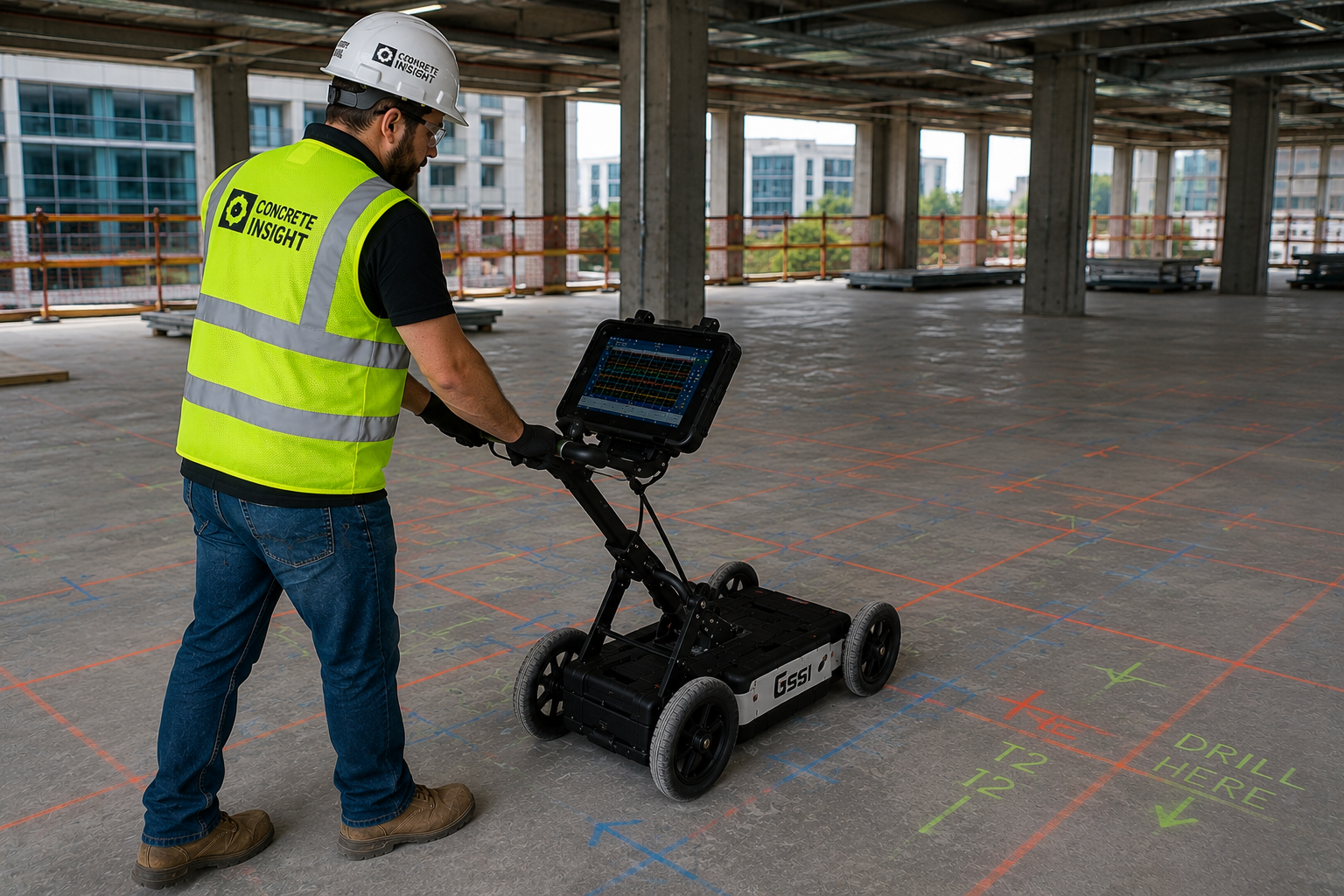

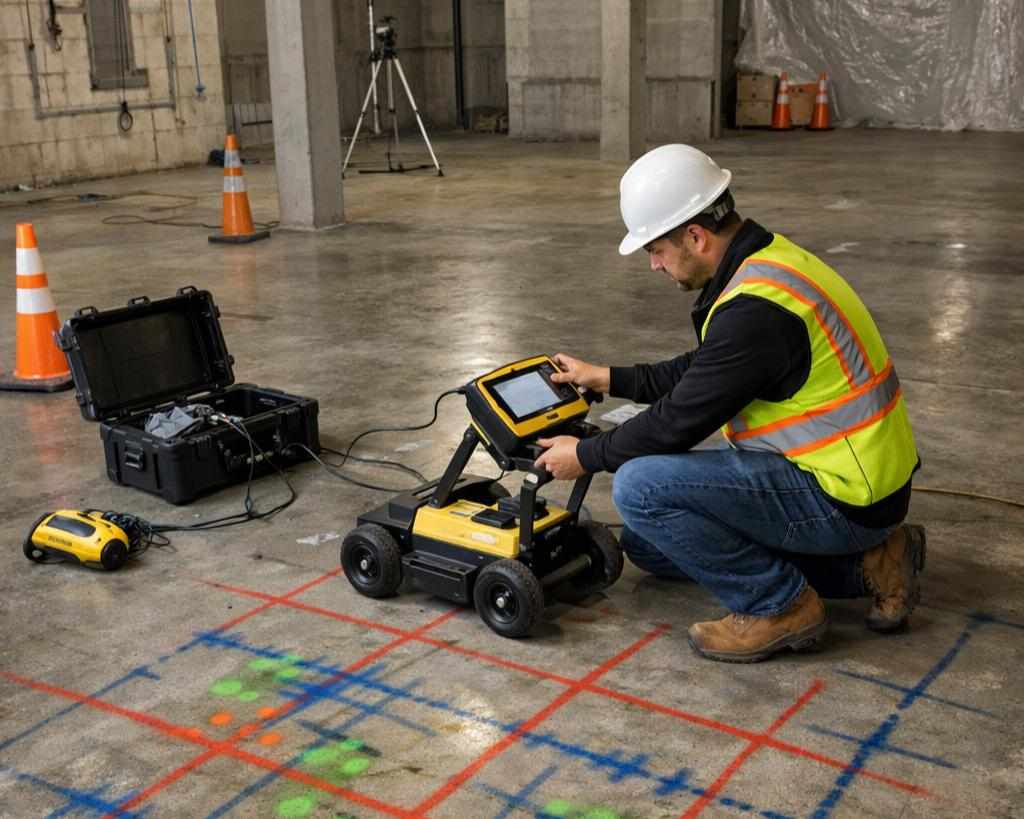

The technician moves the GPR equipment across the specified areas using an appropriate scanning pattern.

Step 4: Interpret the Data

Radar responses are analyzed to identify likely embedded features and material changes.

Step 5: Mark Findings

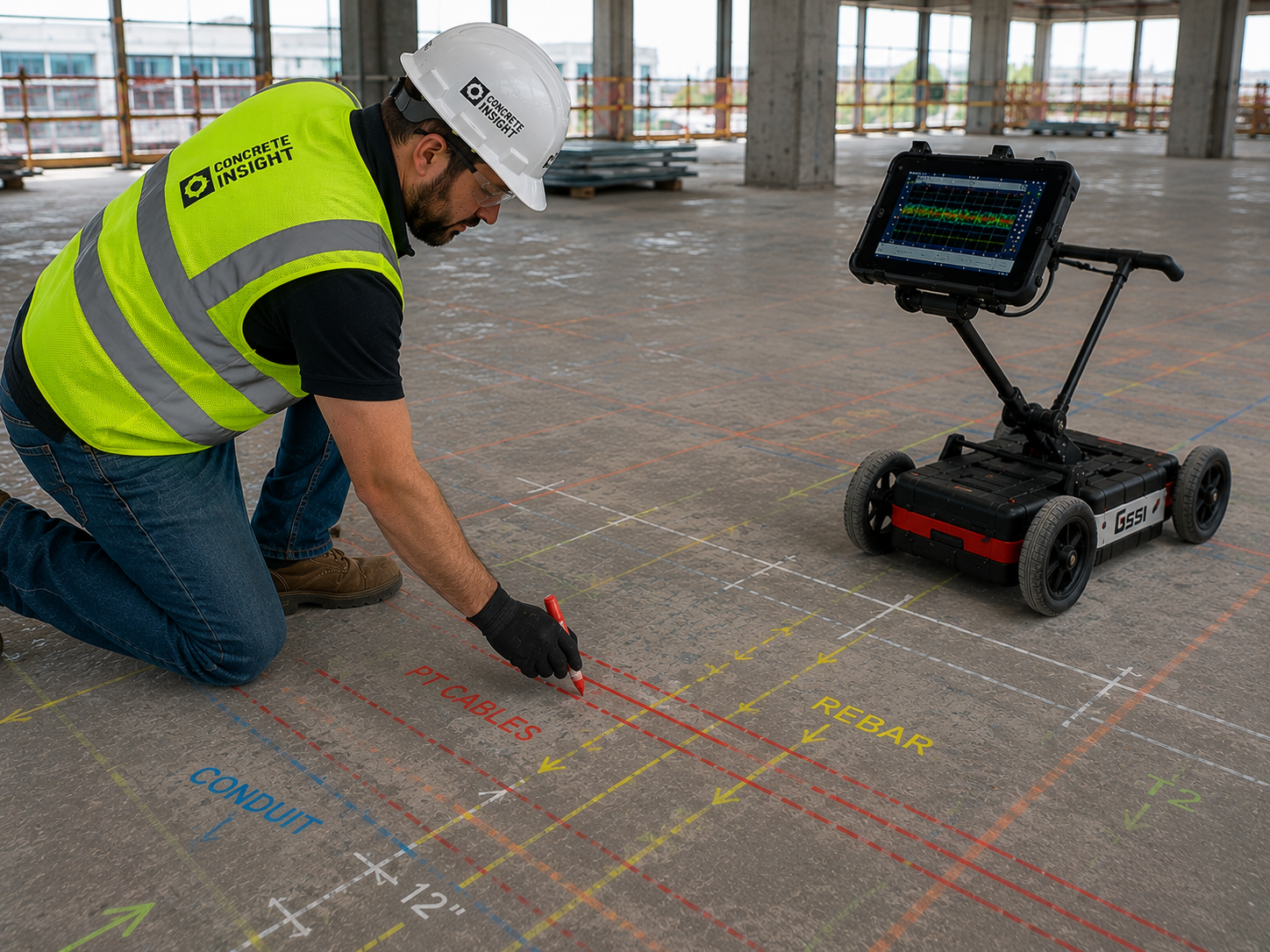

Relevant findings are marked on the concrete so the construction team can understand the scan.

Step 6: Coordinate With the Next Trade

The drilling, coring, engineering, or construction team reviews the markings before proceeding.

Common Mistakes When Hiring a Scanning Company

Choosing Only by Price

Two quotes may appear similar while covering very different scopes. Compare what each provider actually includes.

Assuming GPR Detects Everything

GPR has limitations. Material properties, reinforcement density, moisture, equipment, target characteristics, and interpretation can influence the results.

A professional company should explain those limitations rather than promise perfect detection.

Relying Only on Old Drawings

Existing structures can contain undocumented modifications. Drawings are valuable, but field conditions should also be considered.

Not Sharing the Drilling Plan

The scanner should know what the contractor intends to drill, cut, or install. The proposed work affects what needs to be investigated.

Failing to Review Markings

The drilling crew should understand the scan markings and incorporate the findings into its work plan.

Questions to Ask Before Hiring

Before selecting a provider, ask:

1. What type of GPR equipment will you use?

2. Have you worked on similar commercial projects?

3. What areas of the structure will be scanned?

4. How will potential targets be marked?

5. Will you provide documentation?

6. What factors affect the project cost?

7. What limitations should we expect?

8. Can you coordinate with the coring contractor?

9. Do you provide additional concrete testing services?

10. What information do you need from our project team before the scan?

These questions can help contractors compare providers based on capability rather than marketing claims.

FAQs

1. What is GPR scanning used for in concrete?

GPR scanning can help investigate concrete and locate potential features such as rebar, PT cables, conduits, voids, and other subsurface interfaces, depending on site conditions and equipment.

2. Should I use GPR before concrete coring?

GPR can provide useful information about potential embedded features before coring begins. The appropriate scope depends on the structure and proposed work.

3. How deep can GPR see in concrete?

There is no single depth that applies to every concrete scan. Material properties, electrical conductivity, antenna frequency, target characteristics, and other conditions affect penetration.

4. How much does concrete scanning cost?

Pricing depends on the project scope, scanning area, number of locations, accessibility, documentation, travel, and scheduling. Request a project-specific quote.

5. What is a concrete pull test?

A concrete or anchor pull test evaluates the performance of an installed anchor or fixing by applying a controlled tensile load.

6. What is a Windsor Probe?

A Windsor Probe is a penetration-resistance testing method used to evaluate in-situ hardened concrete. It does not directly measure compressive strength, and test interpretation can be affected by concrete characteristics.

7. Can GPR replace structural drawings?

No. GPR and drawings provide different types of information. Project teams should consider available documentation together with appropriate field investigation.

8. What should I provide when requesting a scanning quote?

Provide the project location, drawings if available, concrete elements to be scanned, proposed drilling locations, approximate quantities, access information, and required schedule.

Conclusion

Choosing a concrete scanning company should be based on experience, equipment, technician expertise, communication, project scope, documentation, and realistic expectations.

For U.S. construction projects, GPR for concrete scanning can be an important part of planning before coring, drilling, cutting, or other concrete penetrations. When combined with appropriate concrete coring services, anchor testing, or Windsor Probe testing, the right inspection approach can give the project team better information for making construction decisions.

Concrete Insight LLC provides GPR scanning, concrete coring, anchor pull testing, Windsor Probe testing, and other concrete inspection services.
