A crew sets up a core drilling machine, lines up the bit, and starts cutting through what looks like open concrete. Ten minutes later, the bit binds on something hard, and a call comes in about a dead electrical panel down the hall. The machine did exactly what it was built to do — it just didn't know what was in its path. According to the American Concrete Institute (2023), close to 30% of concrete drilling incidents involve unmarked utilities or reinforcement damage. This guide covers what a core drilling machine actually does, why scanning has to come first, how to pick between concrete scanning companies, and where an anchor pull test fits into the full sequence.
What Does a Core Drilling Machine Do?

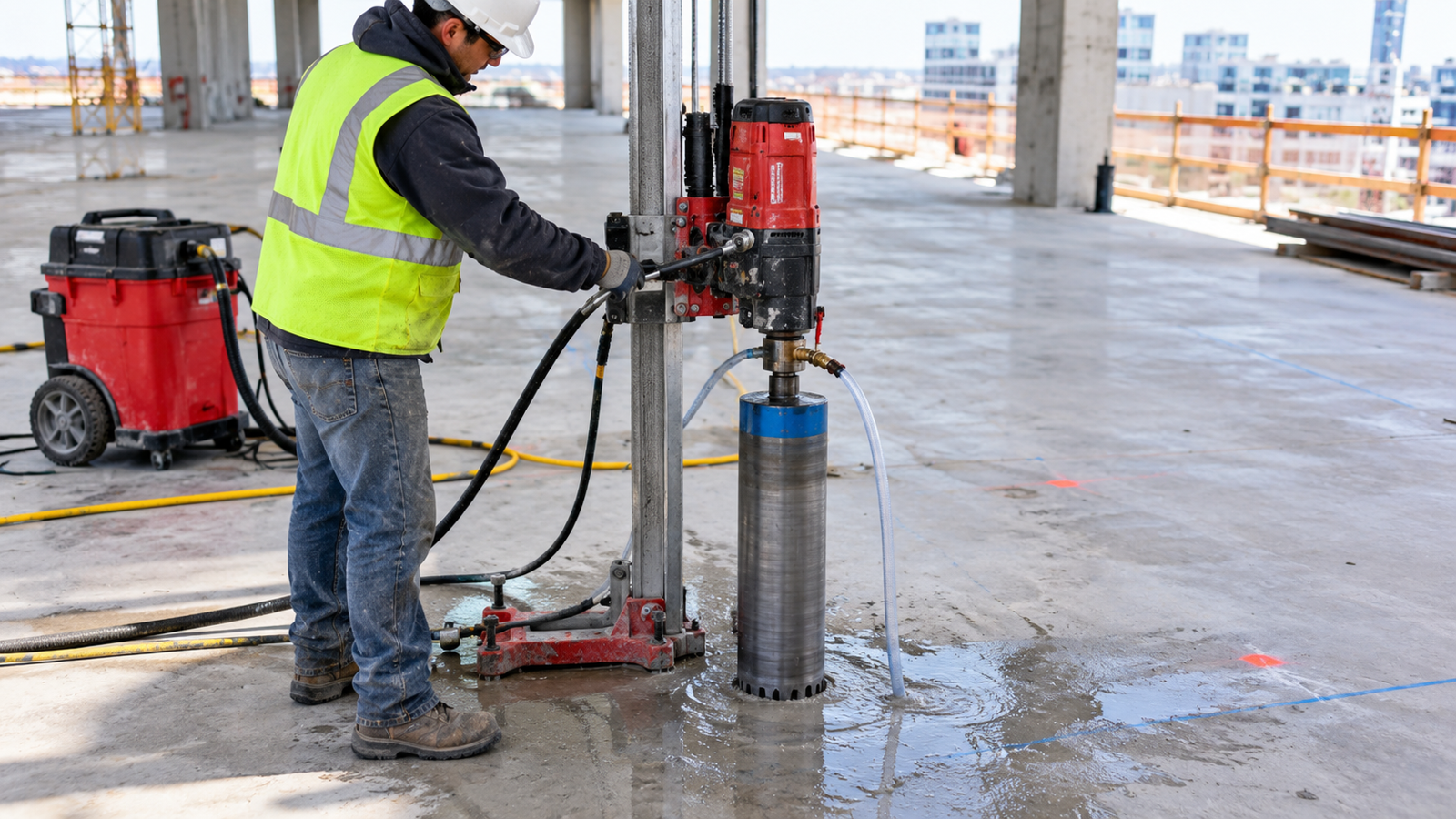

A core drilling machine uses a hollow, diamond-tipped bit to cut clean, round holes through concrete for pipes, conduits, ductwork, and anchor points. Core drilling is common on commercial jobs for HVAC penetrations, plumbing runs, and structural anchor installs, and the machine itself comes in handheld and rig-mounted versions depending on hole size and location.
What the machine can't do is sense what's inside the slab. It cuts through rebar, post-tension cables, and conduit the same way it cuts through plain concrete, and steel can also damage the diamond segments on the bit itself. That blind spot is exactly what ground penetrating radar services are built to close, using radar pulses that reflect differently off steel, air pockets, and solid concrete to reveal what's hidden before the first cut.
What GPR scanning identifies before a core drilling machine starts:
Rebar — steel reinforcement bars embedded for structural strength
Post-tension cables — high-tension cables carrying major structural load
Conduits and electrical lines — power and data cabling inside the slab
Voids — hollow or weak sections that could affect structural integrity
Why Should Scanning Always Happen Before Core Drilling Starts?
Damage from core drilling can't be undone once the bit is already cutting. A severed post-tension cable can cost tens of thousands of dollars to repair and can stall work on an entire floor while engineers assess the impact. A cut conduit can take out power for other trades working nearby, cascading delays across the whole schedule.
On one commercial retrofit, the coordinator made scanning mandatory before every core drilling task, even ones the crew considered routine. That call paid off when a scan flagged a conduit running directly through a planned drill line that wasn't shown on the as-built drawings — moving the hole a few inches avoided a repair that would have cost far more than the scan and stalled the electrical trade for days.
Why scanning-first should be standard, not optional:
Prevents irreversible damage — once the bit is cutting, there's no undoing a hit
Protects the schedule — avoids multi-day delays from hidden hazards
Reduces liability — a documented scan shows due diligence if disputes come up
Supports better planning — anchor and hole layouts can be designed around known hazards
How Do Scanning, Core Drilling, and Testing Fit Together?
The process should always start with a site walk, where the technician and site lead confirm planned hole locations and flag known risks before the core drilling machine is even set up. From there, the GPR unit passes over the marked area in overlapping rows to build a complete picture of what's hidden below.
A properly ordered sequence looks like this:
Site walk — confirm drilling zones and flag known hazards

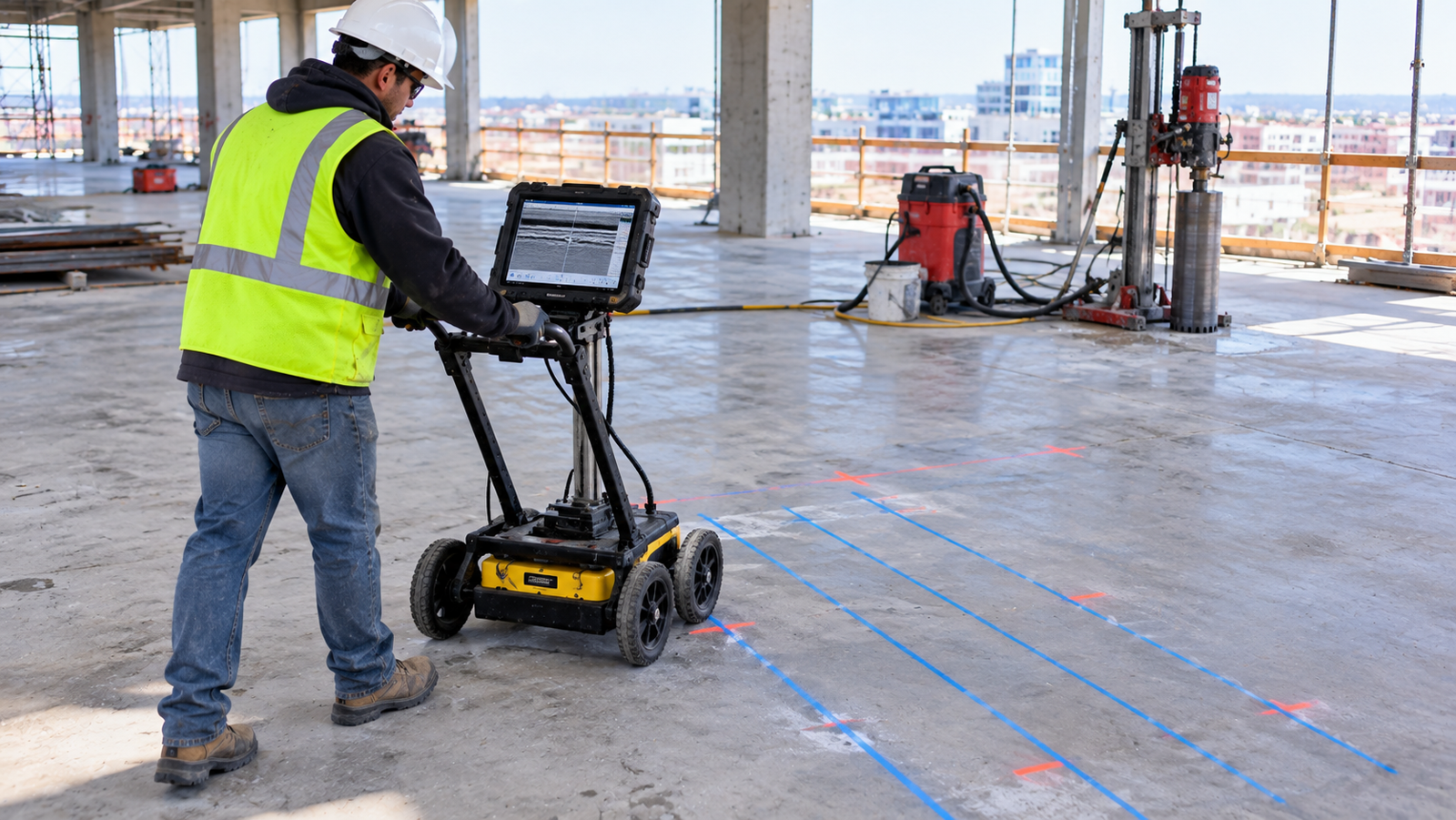

Grid scanning — GPR unit passes over the slab in overlapping rows
Live signal reading — technician interprets rebar, cable, and void patterns
On-site marking — safe-to-drill zones are chalked directly on the concrete
Crew sign-off — the drilling team reviews markings before the machine is set up
Core drilling — the machine operates only within cleared, marked zones
Anchor pull test — confirms holding strength where anchors are installed

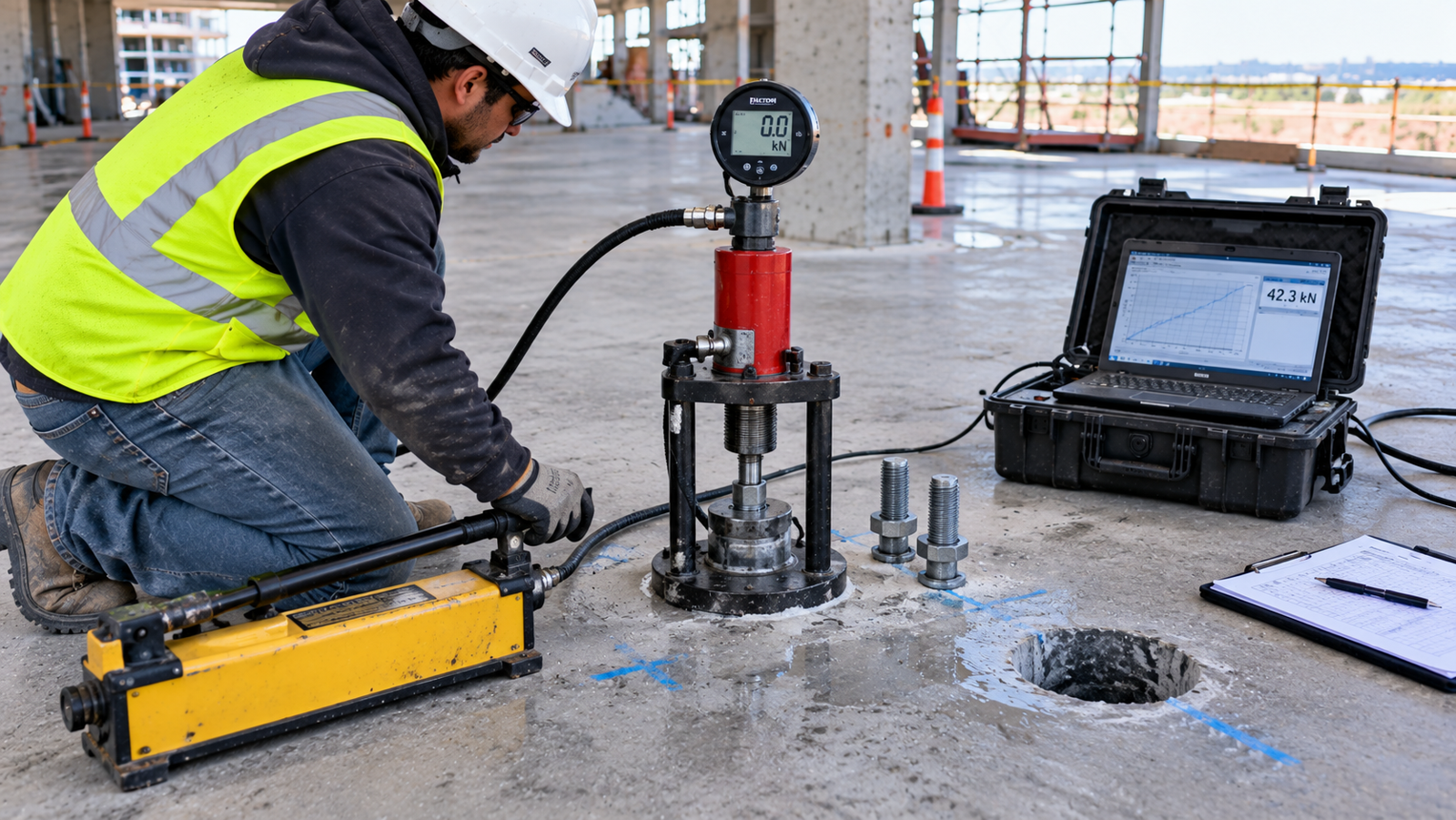

Once core drilling and anchor installation are complete, an anchor pull test applies controlled tension to confirm the anchor holds its rated load without pulling loose. This is a separate check from the GPR scan — the scan protects the slab before cutting, while the pull test verifies the finished anchor afterward.
What Mistakes Do Coordinators Make Choosing a Provider?
The most common mistake is assuming every provider among concrete scanning companies handles the process the same way. Some scan only the exact hole locations requested, leaving gaps in coverage if the bit drifts slightly during drilling. Others build in a wider margin by default, which costs a bit more but reduces risk significantly.
Another frequent issue is not confirming whether a written scan report is included, which matters if a dispute over damage ever needs resolving. Some coordinators also skip asking whether the same provider offers anchor pull test services, ending up managing two separate vendors instead of one streamlined process. Finally, choosing the cheapest quote without asking what area it covers often means a narrower scan than the job actually needs.
Tips for Working With Concrete Scanning Companies
Ask directly whether GPR scanning is standard on every job or only offered when specifically requested — the answer says a lot about how seriously a provider treats the process. Request a sample scan report before the project starts so documentation expectations are clear from day one. Confirm whether the provider can also handle an anchor pull test, since consolidating both services under one vendor simplifies scheduling.
Build scanning into the schedule with enough lead time before core drilling begins, so any findings can be addressed without rushing. Keep every scan report and pull test result filed together, since they matter for compliance, insurance, and future renovation work on the same building.
FAQ
Q1: What is a core drilling machine? A core drilling machine uses a diamond-tipped hollow bit to cut clean, round holes through concrete for pipes, conduits, and anchors.
Q2: Why should GPR scanning happen before core drilling starts? Once the bit is cutting, hidden hazards like cables and rebar are already at risk, so scanning only helps if it happens first.
Q3: What do ground penetrating radar services typically include? They include the radar scan itself, on-site hazard marking, and usually a written report documenting what was found and where.
Q4: How do I choose between concrete scanning companies? Ask about scan area coverage, technician training, whether reports are included, and if anchor pull test services are also offered.
Q5: What is an anchor pull test? It applies controlled tension to a drilled anchor to confirm it holds its rated load without pulling loose from the concrete.
Q6: Is a clean GPR scan enough to skip the anchor pull test? No. The scan prevents damage during drilling, while the pull test verifies the installed anchor performs correctly afterward — they check different things.
Conclusion
A core drilling machine only works safely when it's paired with information about what's hidden inside the slab. Choosing among concrete scanning companies with clear coverage, documentation, and testing options — and following through with an anchor pull test after installation — keeps commercial projects on schedule and protected from avoidable damage. If core drilling is part of your next project, make scanning a required first step before the machine is ever set up.
